打开浏览器的时候，你有没有想过，地址栏也能玩游戏？大多数人肯定没这么想过——毕竟它平时的功能也就那么简单：输入网址、回车、加载网页。但一些程序员总能做些让人意想不到的事。
最近，一位开发者就把经典的《贪吃蛇》搬进了地址栏里。没错，就是小时候大家都玩过的像素版贪吃蛇，现在竟然能在地址栏里动起来。
400 行不到的 JavaScript 代码，把「贪吃蛇」塞到地址栏中
这个项目名叫 URL Snake，出自开发者 Demian Ferreiro 之手。
简单来看，他用了不到 400 行 JavaScript 代码，就在一个原本只能显示文字的地方“造出”了这款游戏。
话不多说，「Talk is Cheap，Show me the code」，完整代码如下：
"use strict";var GRID_WIDTH = 40;var SNAKE_CELL = 1;var FOOD_CELL = 2;var UP = {x: 0, y: -1};var DOWN = {x: 0, y: 1};var LEFT = {x: -1, y: 0};var RIGHT = {x: 1, y: 0};var INITIAL_SNAKE_LENGTH = 4;var BRAILLE_SPACE = "\u2800";var grid;var snake;var currentDirection;var moveQueue;var hasMoved;var gamePaused = false;var urlRevealed = false;var whitespaceReplacementChar;function main { detectBrowserUrlWhitespaceEscaping; cleanUrl; setupEventHandlers; drawMaxScore; initUrlRevealed; startGame; var lastFrameTime = Date.now; window.requestAnimationFrame(function frameHandler { var now = Date.now; if (!gamePaused && now - lastFrameTime >= tickTime) { updateWorld; drawWorld; lastFrameTime = now; } window.requestAnimationFrame(frameHandler); });}function detectBrowserUrlWhitespaceEscaping { // Write two Braille whitespace characters to the hash because Firefox doesn"t // escape single WS chars between words. history.replaceState(null, null, "#" + BRAILLE_SPACE + BRAILLE_SPACE) if (location.hash.indexOf(BRAILLE_SPACE) == -1) { console.warn("Browser is escaping whitespace characters on URL") var replacementData = pickWhitespaceReplacementChar; whitespaceReplacementChar = replacementData[0]; $("#url-escaping-note").classList.remove("invisible"); $("#replacement-char-description").textContent = replacementData[1]; }}function cleanUrl { // In order to have the most space for the game, shown on the URL hash, // remove all query string parameters and trailing / from the URL. history.replaceState(null, null, location.pathname.replace(/\b\/$/, ""));}function setupEventHandlers { var directionsByKey = { // Arrows 37: LEFT, 38: UP, 39: RIGHT, 40: DOWN, // WASD 87: UP, 65: LEFT, 83: DOWN, 68: RIGHT, // hjkl 75: UP, 72: LEFT, 74: DOWN, 76: RIGHT }; [removed] = function (event) { var key = event.keyCode; if (key in directionsByKey) { changeDirection(directionsByKey[key]); } }; // Use touchstart instead of mousedown because these arrows are only shown on // touch devices, and also because there is a delay between touchstart and // mousedown on those devices, and the game should respond ASAP. $("#up").ontouchstart = function { changeDirection(UP) }; $("#down").ontouchstart = function { changeDirection(DOWN) }; $("#left").ontouchstart = function { changeDirection(LEFT) }; $("#right").ontouchstart = function { changeDirection(RIGHT) }; [removed] = function pauseGame { gamePaused = true; window.history.replaceState(null, null, location.hash + "[paused]"); }; [removed] = function unpauseGame { gamePaused = false; drawWorld; }; $("#reveal-url").onclick = function (e) { e.preventDefault; setUrlRevealed(!urlRevealed); }; document.querySelectorAll(".expandable").forEach(function (expandable) { var expand = expandable.querySelector(".expand-btn"); var collapse = expandable.querySelector(".collapse-btn"); var content = expandable.querySelector(".expandable-content"); expand.onclick = collapse.onclick = function { expand.classList.remove("hidden"); content.classList.remove("hidden"); expandable.classList.toggle("expanded"); }; // Hide the expand button or the content when the animation ends so those // elements are not interactive anymore. // Surely there"s a way to do this with CSS animations more directly. expandable.ontransitionend = function { var expanded = expandable.classList.contains("expanded"); expand.classList.toggle("hidden", expanded); content.classList.toggle("hidden", !expanded); }; });}function initUrlRevealed { setUrlRevealed(Boolean(localStorage.urlRevealed));}// Some browsers don"t display the page URL, either partially (e.g. Safari) or// entirely (e.g. mobile in-app web-views). To make the game playable in such// cases, the player can choose to "reveal" the URL within the page body.function setUrlRevealed(value) { urlRevealed = value; $("#url-container").classList.toggle("invisible", !urlRevealed); if (urlRevealed) { localStorage.urlRevealed = "y"; } else { delete localStorage.urlRevealed; }}function startGame { grid = new Array(GRID_WIDTH * 4); snake = ; for (var x = 0; x var y = 2; snake.unshift({x: x, y: y}); setCellAt(x, y, SNAKE_CELL); } currentDirection = RIGHT; moveQueue = ; hasMoved = false; dropFood;}function updateWorld { if (moveQueue.length) { currentDirection = moveQueue.pop; } var head = snake[0]; var tail = snake[snake.length - 1]; var newX = head.x + currentDirection.x; var newY = head.y + currentDirection.y; var outOfBounds = newX 0 || newX >= GRID_WIDTH || newY 0 || newY >= 4; var collidesWithSelf = cellAt(newX, newY) === SNAKE_CELL && !(newX === tail.x && newY === tail.y); if (outOfBounds || collidesWithSelf) { endGame; startGame; return; } var eatsFood = cellAt(newX, newY) === FOOD_CELL; if (!eatsFood) { snake.pop; setCellAt(tail.x, tail.y, null); } // Advance head after tail so it can occupy the same cell on next tick. setCellAt(newX, newY, SNAKE_CELL); snake.unshift({x: newX, y: newY}); if (eatsFood) { dropFood; }}function endGame { var score = currentScore; var maxScore = parseInt(localStorage.maxScore || 0); if (score > 0 && score > maxScore && hasMoved) { localStorage.maxScore = score; localStorage.maxScoreGrid = gridString; drawMaxScore; showMaxScore; }}function drawWorld { var hash = "#|" + gridString + "|[score:" + currentScore() + "]"; if (urlRevealed) { // Use the original game representation on the on-DOM view, as there are no // escaping issues there. $("#url").textContent = location.href.replace(/#.*$/, "") + hash; } // Modern browsers escape whitespace characters on the address bar URL for // security reasons. In case this browser does that, replace the empty Braille // character with a non-whitespace (and hopefully non-intrusive) symbol. if (whitespaceReplacementChar) { hash = hash.replace(/\u2800/g, whitespaceReplacementChar); } history.replaceState(null, null, hash); // Some browsers have a rate limit on history.replaceState calls, resulting // in the URL not updating at all for a couple of seconds. In those cases, // location.hash is updated directly, which is unfortunate, as it causes a new // navigation entry to be created each time, effectively hijacking the user"s // back button. if (decodeURIComponent(location.hash) !== hash) { console.warn( "history.replaceState throttling detected. Using location.hash fallback" ); location.hash = hash; }}function gridString { var str = ""; for (var x = 0; x 2) { // Unicode Braille patterns are 256 code points going from 0x2800 to 0x28FF. // They follow a binary pattern where the bits are, from least significant // to most: ⠁⠂⠄⠈⠐⠠⡀⢀ // So, for example, 147 (10010011) corresponds to ⢓ var n = 0 | bitAt(x, 0) 0 | bitAt(x, 1) 1 | bitAt(x, 2) 2 | bitAt(x + 1, 0) 3 | bitAt(x + 1, 1) 4 | bitAt(x + 1, 2) 5 | bitAt(x, 3) 6 | bitAt(x + 1, 3) 7; str += String.fromCharCode(0x2800 + n); } return str;}function tickTime { // Game speed increases as snake grows. var start = 125; var end = 75; return start + snake.length * (end - start) / grid.length;}function currentScore { return snake.length - INITIAL_SNAKE_LENGTH;}function cellAt(x, y) { return grid[x % GRID_WIDTH + y * GRID_WIDTH];}function bitAt(x, y) { return cellAt(x, y) ? 1 : 0;}function setCellAt(x, y, cellType) { grid[x % GRID_WIDTH + y * GRID_WIDTH] = cellType;}function dropFood { var emptyCells = grid.length - snake.length; if (emptyCells === 0) { return; } var dropCounter = Math.floor(Math.random * emptyCells); for (var i = 0; i if (grid[i] === SNAKE_CELL) { continue; } if (dropCounter === 0) { grid[i] = FOOD_CELL; break; } dropCounter--; }}function changeDirection(newDir) { var lastDir = moveQueue[0] || currentDirection; var opposite = newDir.x + lastDir.x === 0 && newDir.y + lastDir.y === 0; if (!opposite) { // Process moves in a queue to prevent multiple direction changes per tick. moveQueue.unshift(newDir); } hasMoved = true;}function drawMaxScore { var maxScore = localStorage.maxScore; if (maxScore == null) { return; } var maxScorePoints = maxScore == 1 ? "1 point" : maxScore + " points" var maxScoreGrid = localStorage.maxScoreGrid; $("-score-points").textContent = maxScorePoints; $("-score-grid").textContent = maxScoreGrid; $("-score-container").classList.remove("hidden"); $("").onclick = function (e) { e.preventDefault; shareScore(maxScorePoints, maxScoreGrid); };}// Expands the high score details if collapsed. Only done when beating the// highest score, to grab the player"s attention.function showMaxScore { if ($("#max-score-container.expanded")) return $("#max-score-container .expand-btn").click;}function shareScore(scorePoints, grid) { var message = "|" + grid + "| Got " + scorePoints + " playing this stupid snake game on the browser URL!"; var url = $("link[rel=canonical]").href; if (navigator.share) { navigator.share({text: message, url: url}); } else { navigator.clipboard.writeText(message + "\n" + url) .then(function { showShareNote("copied to clipboard") }) .catch(function { showShareNote("clipboard write failed") }) }}function showShareNote(message) { var note = $("#share-note"); note.textContent = message; note.classList.remove("invisible"); setTimeout(function { note.classList.add("invisible") }, 1000);}// Super hacky function to pick a suitable character to replace the empty// Braille character (u+2800) when the browser escapes whitespace on the URL.// We want to pick a character that"s close in width to the empty Braille symbol// —so the game doesn"t stutter horizontally—, and also pick something that"s// not too visually noisy. So we actually measure how wide and how "dark" some// candidate characters are when rendered by the browser (using a canvas) and// pick the first that passes both criteria.function pickWhitespaceReplacementChar { var candidates = [ // U+0ADF is part of the Gujarati Unicode blocks, but it doesn"t have an // associated glyph. For some reason, Chrome renders is as totally blank and // almost the same size as the Braille empty character, but it doesn"t // escape it on the address bar URL, so this is the perfect replacement // character. This behavior of Chrome is probably a bug, and might be // changed at any time, and in other browsers like Firefox this character is // rendered with an ugly "undefined" glyph, so it"ll get filtered out by the // width or the "blankness" check in either of those cases. ["", "strange symbols"], // U+27CB Mathematical Rising Diagonal, not a great replacement for // whitespace, but is close to the correct size and blank enough. ["⟋", "some weird slashes"] ]; var N = 5; var canvas = document.createElement("canvas"); var ctx = canvas.getContext("2d"); ctx.font = "30px system-ui"; var targetWidth = ctx.measureText(BRAILLE_SPACE.repeat(N)).width; for (var i = 0; i var char = candidates[i][0]; var str = char.repeat(N); var width = ctx.measureText(str).width; var similarWidth = Math.abs(targetWidth - width) / targetWidth 0.1; ctx.clearRect(0, 0, canvas.width, canvas.height); ctx.fillText(str, 0, 30); var pixelData = ctx.getImageData(0, 0, width, 30).data; var totalPixels = pixelData.length / 4; var coloredPixels = 0; for (var j = 0; j var alpha = pixelData[j * 4 + 3]; if (alpha != 0) { coloredPixels++; } } var notTooDark = coloredPixels / totalPixels 0.15; if (similarWidth && notTooDark) { return candidates[i]; } } // Fallback to a safe U+2591 Light Shade. return ["░", "some kind of "fog""];}var $ = document.querySelector.bind(document);main;听起来有点疯狂，但真的能玩，而且画面也不是乱闪的乱码。

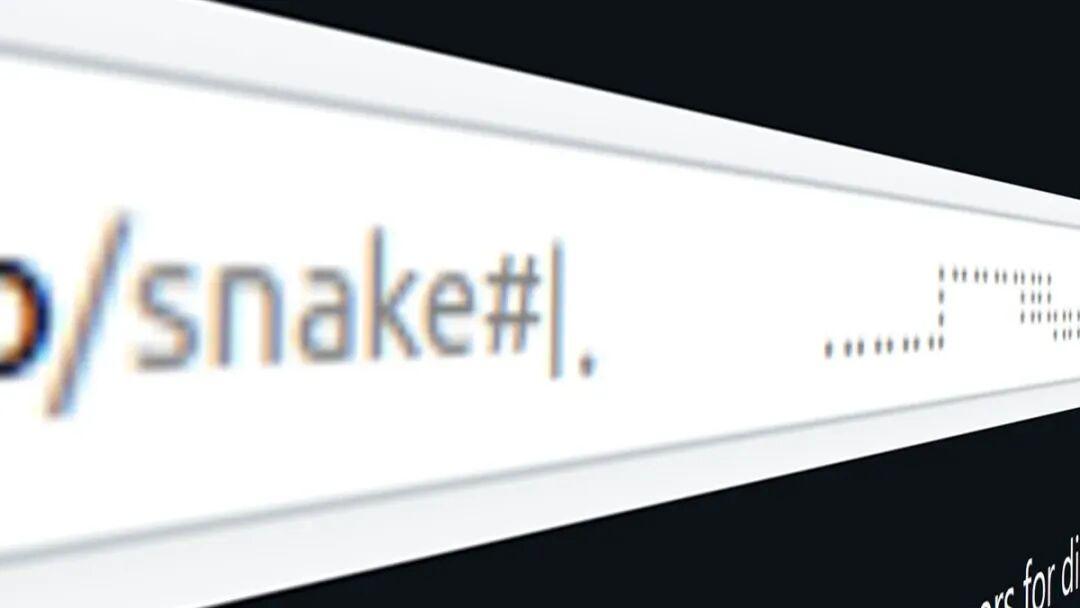

在 Chrome 浏览器上打开，界面如下所示：你能清晰地看到一条由密密麻麻的盲文符号组成的“蛇”在地址栏里爬动，即「长的点」代表贪吃蛇，「单个点」是食物，吃掉小点点代表的食物，身体一点点变长。
整个画面虽然简陋，但加上浏览器实时更新 URL 的那种“闪动”，它像极了 DOS 年代的小游戏，简洁、直接、充满旧时代的技术感，也引发了一波回忆潮。
从操作上看，游戏支持「↑↓←→」方向键或 WASD 控制蛇移动。随着吃掉的“食物”增多，速度也会慢慢提升，难度上升。你需要反应足够快才能避免撞墙或自咬。虽然画面高度只有 4 行，但可玩性依然不错。
为了感兴趣的小伙伴能上手体验，Demian Ferreiro 将项目代码在 GitHub 上开源了：
https://github.com/epidemian/snake
试玩地址：
http://demian.ferrei.ro/snake
游戏原理
其实从技术上讲，要在浏览器那条显得有些狭窄的地址栏里面塞进一个小游戏，说简单不简单，说难也确实挺有门道。毕竟那地方既不能嵌入 Canvas 或 SVG，也没有图形 API 可以用，几乎不可能画出像样的画面。
好在 Ferreiro 向来不是一个墨守成规的极客，正如上图所示，他想出了一个让人意想不到的办法——用 Unicode 字符“画”出游戏画面。可以说，这波操作把“极简主义”玩到了极致。

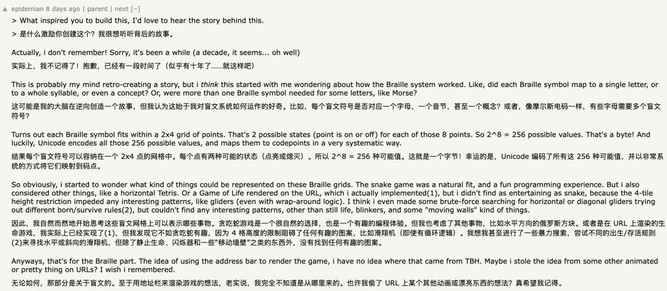

至于为什么 Ferreiro 会想到这个离谱的项目，他自己也记不太清了。他在 Hacker News 上提到，灵感可能来源于 Unicode 的盲文字符（Braille）系统。他发现一个有趣的规律：
每个盲文字符都是 2×4 的点阵，每个点只有两种状态——亮或不亮。8 个点组合起来，正好对应一个字节，总共 256 种组合，而且 Unicode 把这些组合全都映射成编码点。
Ferreiro 兴奋地说：“这不就是展示字节级动画潜力的完美载体吗？”
于是，他把这个思路用在了 URL 栏里：用一串盲文字符拼出一块虚拟的“游戏屏幕”，每一帧都重新生成字符，更新蛇的形状和位置。
这个版本的《贪吃蛇》在一个 40×4 的“像素格”上运行，用了 requestAnimationFrame 来驱动动画，让一串串盲文字符在地址栏中滑动起来。虽然只有四行高，但蛇一旦上下移动，玩家就得迅速反应，否则分分钟撞墙。
玩这个游戏时，其实就是浏览器不断修改地址栏内容，用不同的 Unicode 符号“刷出”画面。它有点像早年程序员在命令行窗口里做 ASCII 动画，只不过这次空间更狭小，也更有创意——一条蛇，硬是在一行网址里“活”了过来。
副作用——打开浏览器的“历史记录”，网友：“天塌了”

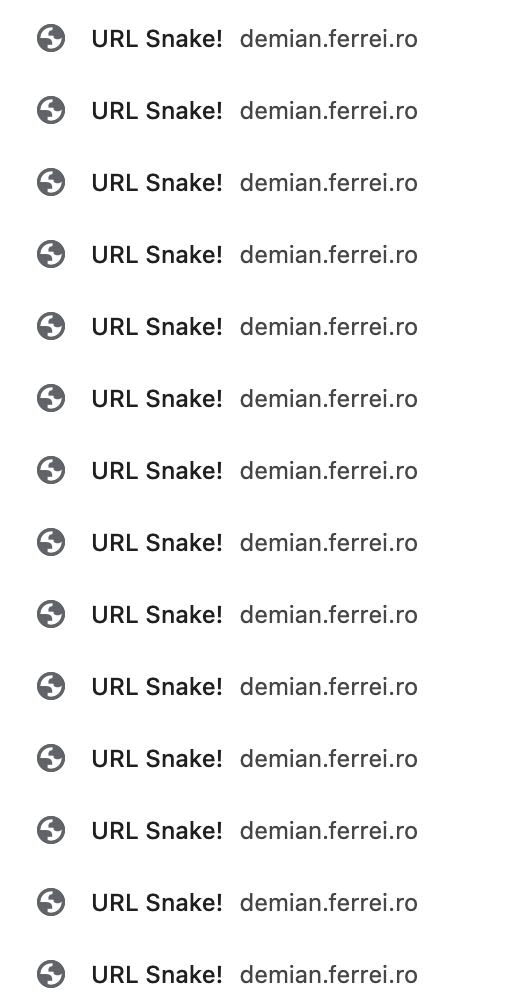

玩着玩着，很多人会注意到一个奇怪的副作用：浏览器里的历史记录会被这个网址疯狂「刷屏」。
也不用太担心，正如上文所述，因为每一次蛇的移动都意味着地址栏内容发生了变化，浏览器就会记录一次新“访问”。短短一局游戏下来，你的历史记录可能已经塞满几百个“URL Snake”的痕迹。
Chrome 用户可以靠批量删除功能一次清掉，但如果你用的是其他浏览器，那就只能慢慢手动清理。
此外，游戏的画面空间非常有限。只有四行“像素”的高度，让上下移动变得特别危险。稍微操作迟一点就容易撞上自己。再加上地址栏本身不是为显示图形而生，盲文字符的显示效果也会受不同系统和字体影响，在某些浏览器里可能略显错位。换句话说，这并不是一款“完美”的游戏，而更像是一场炫技实验。
“这个项目本身带着点玩笑性质，但也不妨可以继续探索”
很多人好奇 Ferreiro 为什么要这么折腾？做一个普通网页游戏不是更简单吗？
其实，这种项目的意义不在“实用”，而在“创意”和“挑战”。对开发者来说，URL Snake 就像一场极限运动。它验证了一个问题——“我们能不能在完全不合适的环境里做出游戏？” 这种逆向思维带有一点黑客精神，也让人想起早期互联网的自由氛围：没人告诉你什么能做、什么不能做。
Ferreiro 在发布时也说过，这个项目本身带着点玩笑性质，但他觉得有趣的地方就在于：地址栏是网页中最被忽视的部分，它几乎没有被用作创意表达的空间。而他想让大家重新注意到这一点。
他也表示愿意继续改进，欢迎大家在 GitHub 上提交 bug、提意见、甚至直接拉个 PR 一起完善。
最后
看到这样一款游戏的诞生，HN 上网友也纷纷表达了自己的看法：
CobrastanJorji：太棒了。我喜欢人们用非常富有创意的方式让事物以奇怪的方式变得互动。百分百的黑客精神。干得好。

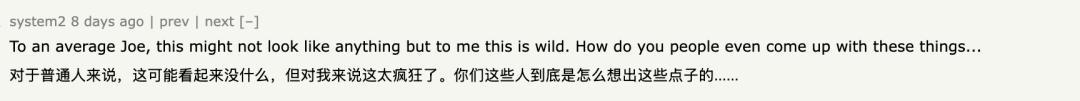

system2：对于普通人来说，这可能看起来没什么，但对我来说这太疯狂了。你们这些人到底是怎么想出这些点子的……

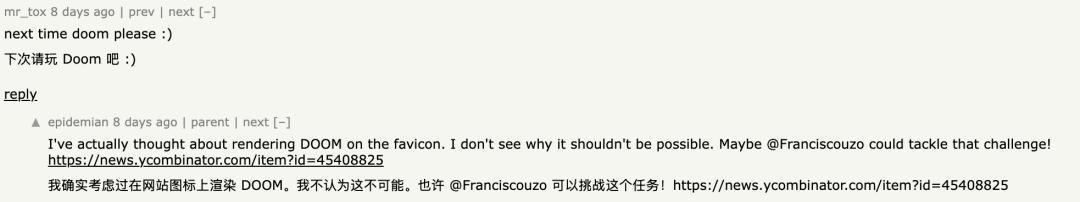

甚至有人期待，什么时候能在地址栏里面玩 DOOM 游戏？
其实说到底，URL Snake 不只是一个小游戏，更像是一场创意实验。它证明了即使在最“不适合”的环境里，也依然可以找到代码表达的可能。它没有酷炫的图形，也没有复杂的关卡，却让人看到了编程的另一种浪漫：在规则之外寻找惊喜。
